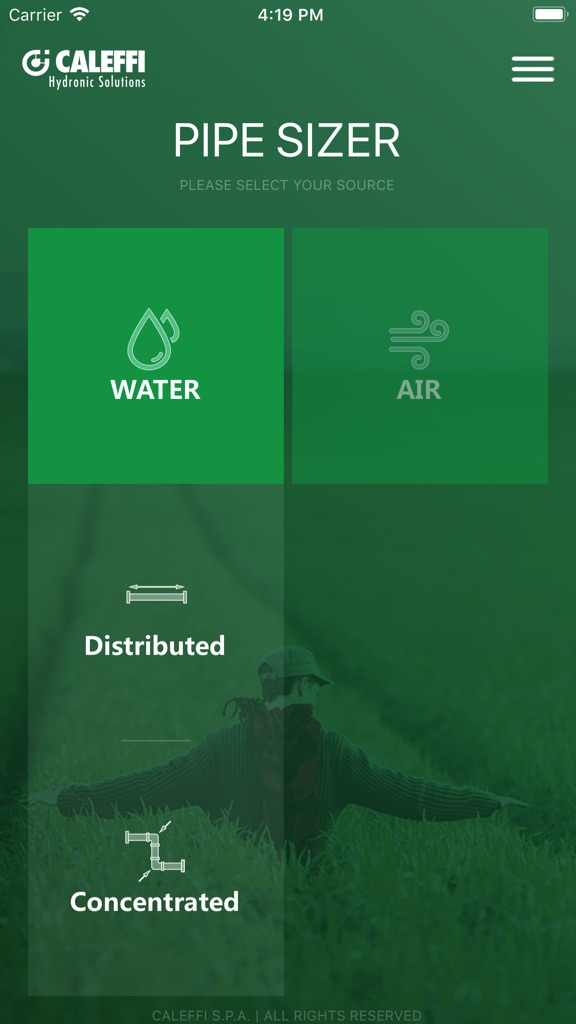

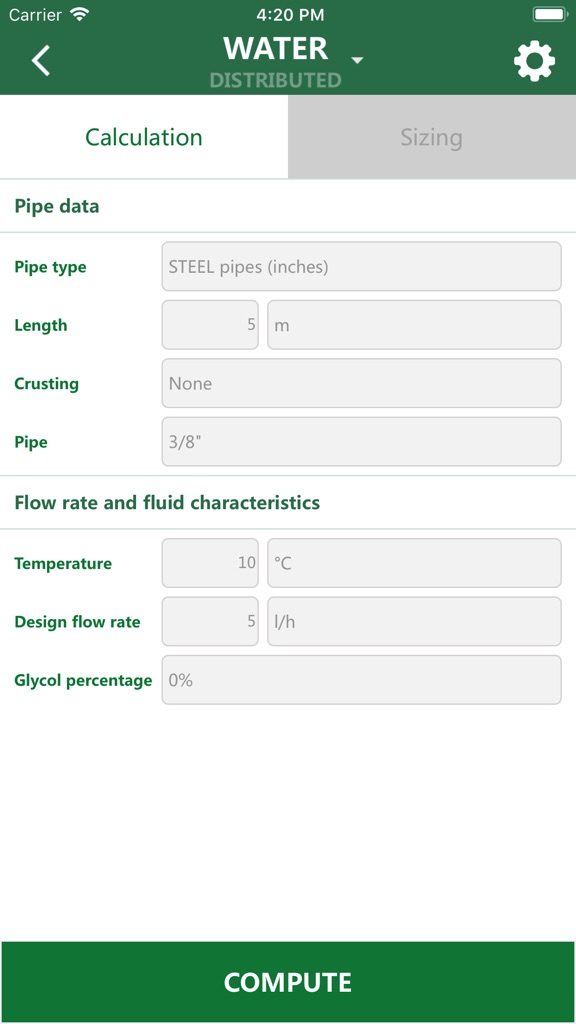

Caleffi Pipe Sizer应用截图

Caleffi Pipe Sizer应用简介

The WATER AND AIR FLOW HEAD LOSS TABLES, initially available only in printed form, are now available as a mobile app. CALEFFI PIPE SIZER. This application allows for sizing and making calculations for pipes and conduits carrying water or air, respectively for hydraulic or aeraulic plants.
The application’s database contains the most common types of piping, grouped according to materials, shapes and most widespread dimensions, and it is possible to set the preferential units of measurement for all physical parameters used.

For both types of fluids (water – even water-glycol mixtures – or air), the application allows for making calculations for various purposes:
Calculation of distributed head losses in existing or pre-selected pipes
Distributed head losses refer to sections of linear pipes. After selecting the type, size and length of the pipe to be calculated, and specifying necessary data such as the fluid’s temperature and the rated flow, the application calculates the total head loss of the pipe section, the linear head loss and the speed of the fluid under the specified conditions.

Sizing of pipes
If the pipes need to be sized, this mode allows for calculating the optimal dimensions of the pipe based on the project parameters specified by the user.
In addition to the type and length of the pipe section to be sized, the fluid’s temperature and the rated flow, it is possible to set the typical project parameters by choosing between linear head loss or fluid speed, or both, in order to size the pipe. Moreover, it is possible to enter a maximum limit value for these parameters. The application will then calculate the pipe dimensions that most closely match the specified project conditions.
In the case of aeraulic plants, the application allows for sizing conduits with either round or rectangular cross-section.

Calculation of localised head losses
Localised head losses refer to non-linear pipe sections, such as bends, bottlenecks, branches and similar features. By means of a dedicated graphic support, the application allows for choosing one or more types of localised head losses, and calculating both the individual values and the total sum.

中文翻译

水和空气流量水头损失表最初仅以印刷形式提供，现在可以作为移动应用程序使用。CALEFFI管道分配器。此应用程序允许分别为水力或航空设备输送水或空气的管道和导管进行尺寸和计算。
应用程序的数据库包含最常见的管道类型，根据材料，形状和最广泛的尺寸进行分组，并且可以为所使用的所有物理参数设置优先的测量单位。

对于两种类型的流体 (水-甚至水-乙二醇混合物-或空气)，该应用程序允许进行各种目的的计算:
现有或预选管道中分布水头损失的计算
分布式水头损失是指线性管道的部分。在选择了要计算的管道的类型，尺寸和长度，并指定必要的数据 (例如流体的温度和额定流量) 之后，该应用程序计算了管道截面的总水头损失，线性水头损失以及在指定条件下流体的速度。

管道尺寸
如果需要对管道进行尺寸调整，则此模式允许根据用户指定的项目参数计算管道的最佳尺寸。
除了要确定尺寸的管段的类型和长度，流体的温度和额定流量外，还可以通过在线性水头损失或流体速度或两者之间进行选择来设置典型的项目参数，以便对管道进行尺寸调整。而且，可以为这些参数输入最大极限值。然后，应用程序将计算与指定项目条件最匹配的管道尺寸。
在航空设备的情况下，该应用允许对具有圆形或矩形横截面的导管进行尺寸调整。

局部水头损失的计算
局部扬程损失是指非线性管道部分，例如弯曲，瓶颈，分支和类似特征。通过专用图形支持，该应用程序允许选择一种或多种类型的局部水头损失，并计算各个值和总和。
